Min.Working  length

500mm

Working  thickness

2-150mm

Roller diameter

300mm

Polishing roller speed

Frequency Control

Feeding  speed

2.5-12.5m/min

Total  motor  power

22.27kw

Overall dimensions

4400*2100*2100mm

Net weight

5800kg

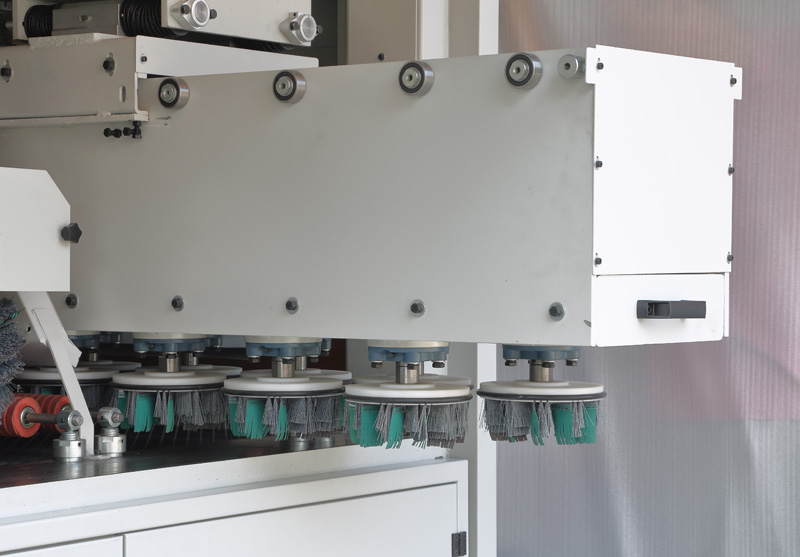

Disk motor power

Disk, first track 6, second track 5

1.5KW*1

Horizontal roller motor power

Horizontal rollers, first 5, second 4

1.5KW*2

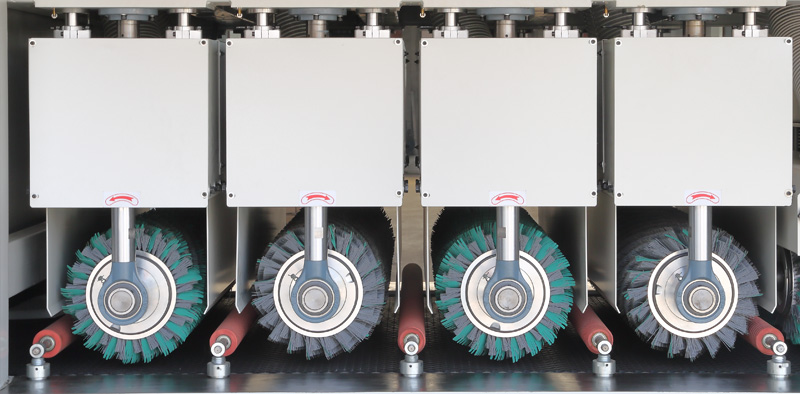

Spiral roller motor power

3KW *4

Lift motor

0.37KW*4

Workbench lifting motor

0.55KW

Conveyor motor

3KW

Swing motor

0.37KW *2
